Diamondback 2013 Recoil Pro 29er Full Suspension Mountain
Bike with 29-Inch Wheels
From Diamondback
List Price:$1,600.00
Price: $1,199.00
Average customer review:
(4 customer reviews)
Select Size
Size: (choose one)
16-Inch/Small 18-Inch/Medium
Availability: Select Size to view.
Product Description
The dictionary defines recoil as Inch to spring or come
back; react. Inch The Diamondback Recoil takes that definition to heart.
Whether it is flying down the wide open trail or making its way through twisty
tight single track, the Recoil Comp will react to what is under its tires and
then spring back and be ready to take on what comes next. 29 inch wheels. The
larger diameter wheel is taking over, and with good reason.
The foundation for this is firmly laid with an all-new 6061
T-6 Aluminum Trail frame sporting 4 Inch of travel via the RockShox Monarch R
air rear shock (more on this later). The frame uses a machine formed top tube
and a butted and formed down tube sharing tubing from our nicer Sortie series.
It uses a sealed cartridge bearing pivot and is built around an optimized
single pivot design which is the simplest type of rear suspension because there
are few moving parts. It consists of a pivot just above the bottom bracket,
slightly up on the down tube and a single swingarm to the rear axle. Being that
the rear triangle directly attaches to the rear shock, the shock has a more
linear spring rate and offers good small bump compliance.
Larger wheels are not the only improvement made to the 2013
Diamondback Recoil Pro 29. We've added a RockShox Monarch R air rear shock to
compliment the Rock Shox Recon Silver 29 fork. This fork features rebound
dampening adjust and a turnkey lock out. The lockout allows the rider to limit
the travel to enhance your climbing experience.
The Shimano SL-M430 Rapidfire 9-speed shifters control an
Alivio front and an Deore rear derailleur. Combined with and the HG30 9-spd
Cassette (11-32t) combined with the Shimano FCM-521 9-spd Octalink crankset (
22/32/44t) give you 24 mountain crushing gears to choose from.
RECOIL 29
RECOIL COMP 29
RECOIL PRO 29
SORTIE 1 29
MSRP $750.00 $1,100.00 $1,600.00 $2,300.00
Sizes 16"
Small 18" Medium 20" Large 16" Small
18" Medium 20" Large 16" Small 18" Medium 20" Large 15.5" Small
17" Medium 19"
Large 21" XLarge
Color Black/Red Black/Silver Black/Blue Silver
Key Upgrades Upgrades from Recoil 29:
Front Fork: Suntour SCR RL w/ Rebound damping and speed
remote lockout gives the rider the ability to customize the rigidity of the
fork without breaking stride. Engage the remote lockout found on the handlebars
Rear Suspension: SR Suntour XCR RL Air Spring features the
extremely durable Solo Air spring system w/ external rebound adjustment. Upgrades from Recoil 29 COMP:
Front Fork: RockShox Recon Silver 29 w/ turnkey lockout to
limit the forks travel for enchanced climbing ability.
Rear Suspension: Rear suspension lockout for improved pedal
efficiency.
Drivetrain: Shifters, Rear Derailleur, Cassette, & Chain
upgraded to 9 spd compatible for a total of 27 speeds to choose from.
Brakes: Hydraulic disc brakes provide more responsive
stopping power than both mechanical disc brakes and rim brakes in all
conditions. Upgrades from Recoil 29
PRO:

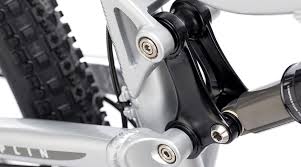

Knuckle Box Full Suspension Technology: Low and Tight keep
the placement for stable and balanced ride.
Front Fork: Fox 32 Float CTD 29 RL 120mm travel air fork
bath cartridge. Lock out - Lock out allows the fork to be "locked
out" or stiffened for more pedaling efficiency on smoother surfaces, but
also be “opened up” for bump compliance on uneven terrain.
32mm Easton Stanchions: Bigger stanchions equate to better
steering and less fork flex.
Rear Suspension: Fox Float CTD Air Shock with Boost Valve.
The extra volume "LV" 190×51mm air shock with rebound adjust 3
position Propedal Platform On/Off lever provides a feeling of endless travel
and plushness like that of a downhill rig.
Drivetrain: Shifters, Rear Derailleur, Cassette, & Chain
upgraded to 10 spd compatible for a total of 30 speeds to choose from.
Frame DB Recoil 6061
T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed
Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot,
replaceable hanger DB
Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot,
Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing
Pivot, replaceable hanger DB
Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot,
Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing
Pivot, replaceable hanger Sortie
29r Trail 4.5" , 6061-T6 Weapons Grade Aluminum w/ Taper Head Tube /
Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, Under Arch
Seatstay bridge, Knuckle Box Technology, 135mmx9mm Verticle Drop out
Fork SR XCT 100mm
travel w/external preload adj. SR
Suntour XCR RL 100mm travel w/ rebound damping adj. w/ speed lock remote RockShox Recon Silver 29, Solo Air,
external rebound adj. w/turnkey lockout Fox
32 Float CTD 29 Air, 120mm travel, open cartridge, with ext. rebound / lock
out, butted Alloy Tapered 1.5 steerer, 32mm Easton aluminum stanchions,
magnesium lowers, 9mm QR Drop out
Rear Shock Tuff
Shock Coil 190x51mm w/ oil Damping RockShox
Monarch R, Air Spring, 190x51mm w/ external rebound adj. RockShox Monarch R, Air Spring, 190x51mm w/ external rebound,
and lockout. Fox Float CTD Boost Valve
"LV" eyelet 190x51mm Air w/ rebound adj, Climb, Trail, Descend lever
Crank SR Suntour XCC
T202 24/34/42t Shimano Alivio 8spd
Octalink w/ replaceable rings, 22/32/42t Shimano
FCM-521, Hollow Tech, 9spd Octalink w/replacable rings, 22/32/44t Shimano M522 Dyna-Sys 10spd, 3pc,
Hollow tech, Octalink w/ replaceable rings, 22/32/42t
Bottom Bracket Sealed
Cartridge Shimano BB-ES25
w/Octalink spindle Shimano BB-ES25
w/Octalink spindle Shimano BB-ES25
w/Octalink spindle
Front Derailleur Shimano
Altus dual pull, top swing, 34.9 Shimano
Altus dual pull, top swing, 34.9 Shimano
Altus dual pull, top swing, 34.9 Shimano
SLX High Direct Mount 3x10
Rear Derailleur Shimano
Acera SGS 8spd Shimano Alivio
SGS 8spd Shimano Deore SGS
9spd Shimano Deore 10spd
Shadow type
Shifters Shimano
SL-M310 8spd Rapidfire Shimano
SL-M310 8spd Rapidfire Shimano
SL-M430 Alivio 9spd Rapidfire Shimano
Deore 10spd Rapidfire
Brake Levers Tektro
Alloy w/ reach Adjust Tektro Alloy w/
reach Adjust Shimano M395 Hydrualic
w/ reach Adjust Shimano
M445 w/ reach adj.
Brakes Tektro Novela
Disc w/ 6" Rotors Hayes
HMX-5 Mechanical Disc w/ 6" Rotors Shimano
M395 Hydrualic Disc w/ 6" Rotors Shimano
M445 Hydraulic Disc w/ 6-bolt, 180mm frt / 160mm rear Rotors
Chain KMC-Z82 KMC-Z82 KMC-Z99 Shimano
HG54 10spd
Cassette Shimano
HG31 8spd Cassette (11-32t) Shimano
HG31 8spd Cassette (11-32t) Shimano
HG30 9spd Cassette (11-34t) Shimano
HG62 10spd Cassette (11-36t)
Tires WTB
Wolverine Comp 29x2.2 WTB Wolverine
Comp 29x2.2 WTB Wolverine Comp 29x2.2 WTB Wolverine 2.2 Comp, Folding
Rims 32h Weinmann
SL-7 Doublewall 32h
Weinmann SL-7 Doublewall 32h
Weinmann SL-7 M-Series Doublewall 32h
WTB Speed Disc 29 Doublewall
Hubset (F) 32h SL-7
Alloy w/ CNC Disc Mount (R) 32h SL-7 Alloy Cassette w/ CNC Disc mount (F) 32h SL-7 Alloy w/ CNC Disc Mount (R)
32h SL-7 Alloy Cassette w/ CNC Disc mount
(F) 32h SL-7 Alloy w/ CNC Disc Mount (R) 32h SL-7 Alloy Cassette w/ CNC Disc
mount (F) 32h SL-7 Alloy w/ CNC Disc
Mount (R) 32h SL-7 Alloy Cassette w/ CNC Disc mount
Spokes Black 14g Stainless
Steel Silver 14g Stainless
Steel Silver 14g Stainless
Steel Black 14g Stainless
Steel
Stem DB AL6061
Ahead 7° 31.8mm DB AL6061 Ahead 7°
31.8mm DB 3D Forged 7° 31.8mm DB AL6061 Ahead 7° 31.8mm
Headset Zero
Stack Ahead 1 1/8" Zero
Stack Ahead 1 1/8" Zero
Stack Ahead 1 1/8" FSA
No57 Taper 1.5 / 1 1/8" Alloy cups, Sealed Cartridge
Handlebar DB
SL318b Oversize 31.8mm Mid Rise DB
SL318b Oversize 31.8mm Mid Rise DB
SL318b Oversize 31.8mm Mid Rise DB
Lazer Series 31.8mm low rise
Grips DB4L 135mm
Kraton DB4L 135mm Kraton DB4L 135mm Kraton DB4L 135mm Kraton
Seatpost DB
SL309p Alloy Micro Adjust 30.9mm DB
SL309p Alloy Micro Adjust 30.9mm DB
SL309p Alloy Micro Adjust 30.9mm Diamondback
Lazer Series Micro Adjust 31.6mm
Seat WTB VOLT
Sport SE WTB VOLT Sport SE WTB VOLT Comp WTB VIGO comp
Pedals DB Toe Clip
Compatible Platform DB Sound
Alloy w/ molded traction pins DB
Sound Alloy w/ molded traction pins DB
Toe Clip Compatible alloy
Extras Owner’s
manual, Chainstay Protector, Clear Coat Owner’s
manual, Chainstay Protector, Clear Coat Owner’s
manual, Chainstay Protector, Clear Coat Knuckle
Box Shock Pump, Sag Gauge, DB Key Chain, Owner’s manual / Sortie owner's manual
cover, Chainstay Protector, Clear Coat, H20 bottle mounts
Total Speeds 24-speed 24-speed 27-speed 30-speed
Notes Specifications
Subject to Change Specifications
Subject to Change Specifications
Subject to Change Specifications
Subject to Change
GEOMETRY
Because people come in all shapes and sizes, we have
multiple frame sizes to make riding more comfortable. Please use the geometry
below to find the best fit for you.
SORTIE 29 1.0 FRAME GEOMETRY
Size 15.5"
Small 17" Medium 19" Large 21" XLarge
Recommended Heights* 5'5"
- 5'7" 5'7" -
5'10" 5'11" - 6' 6'1" - 6'3"
Standover Height 29.0" 30.0" 31.0" 32.5"
Seat Tube Length 15.5" 17.0" 19.0" 21.0"
Top Tube Length 22.5" 23.5" 24.0" 25.0"
Head Tube Length 100.0mm 110.0mm 130.0mm 140.0mm
Head Angle 69.5° 69.5° 69.5° 69.5°
Seat Angle 73.0° 73.0° 73.0° 73.0°
Wheel Base 1107.0mm 1133.0mm 1149.0mm 1163.0mm
Chain Stay Length 455.0mm 455.0mm 455.0mm 455.0mm
Fork Offset 44.0mm 44.0mm 44.0mm 44.0mm
BB Height 330.0mm 330.0mm 330.0mm 330.0mm
Stem Length 90.0mm 90.0mm 105.0mm 105.0mm
Handlebar Width 670.0mm 670.0mm 670.0mm 670.0mm
Crank Length 170.0mm 175.0mm 175.0mm 175.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm
*Please note that these are just height recommendations.
People come in all different proportions and have different comfortable riding
geometries – the height ranges may not work for all people. To further ensure
comfort when riding a Diamondback road bike we recommend your inseam be at
least 1 inch taller than the standover height.
RECOIL SERIES FRAME GEOMETRY
Size 16"
Small 18" Medium 20" Large
Recommended Heights* 5'5"
- 5'7" 5'8" -
5'10" 5'11" -
6'2"
Standover Height 29.5" 30.5" 31.5"
Seat Tube Length 16.0" 18.0" 20.0"
Top Tube Length 22.0" 23.0" 24.0"
Head Tube Length 90.0mm 100.0mm 120.0mm
Head Angle 70.0° 70.0° 70.0°
Seat Angle 74.0° 74.0° 74.0°
Wheel Base 1107.0mm 1125.0mm 1159.0mm
Chain Stay Length 466.0mm 466.0mm 466.0mm
Fork Offset 46.0mm 46.0mm 46.0mm
BB Height 330.0mm 330.0mm 330.0mm
Stem Length 60.0mm 75.0mm 75.0mm
Handlebar Width 685.0mm 685.0mm 685.0mm
Crank Length 170.0mm 175.0mm 175.0mm
Seat Post Length 300.0mm 300.0mm 300.0mm
*Please note that these are just height recommendations.
People come in all different proportions and have different comfortable riding
geometries – the height ranges may not work for all people. To further ensure
comfort when riding a Diamondback road bike we recommend your inseam be at
least 1 inch taller than the standover height.
BRAND STORY
Since 1978, the Diamondback brand name has been synonymous
with precision, durability and integrity. Likewise, it should be no surprise to
know that these are our core values which inform the design and production of
each and every one of our bikes. From the top down, everything we build evolves
from these values. Everything we stand for is embedded in who we are.
From our deep roots in BMX to our progressive and groundbreaking
Knuckle Box Suspension Platform, we build bikes for all people… all riders.
From the elite road racer or mountain bike enthusiast, to the dedicated and
committed cause or event rider. From kids to adults and everything in between…
we build bikes for you.
Diamondback is a company unafraid of blazing its own trail.
We are Diamondback… DB4L.
Product Details
Amazon Sales Rank: #37713 in Sports & Outdoors
Brand: Diamondback
Model: 02-13-2350-p
Released on: 2012-07-25
Features
RECOIL 6061-T6 Aluminum 4 Inch Trail Frame
RockShox Recon Silver 29, Solo Air Fork / RockShox Monarch
R, Air Sprung Rear Shock
Shimano Deore rear derailleur w/SL-M430 9spd rapidfire
shifters
32h Weinmann SL-7 M-Series Doublewall Disc Rims
Shimano M395 Hydrualic Disc Brakes
Customer Reviews
Most helpful customer reviews
18 of 18 people found the following review helpful.
Recoil Pro
By B. OBannon
I bought this bike from the local bike shop about a month
ago along with a Bontrager wireless computer. Currently, I have over 120 miles
on this bike. For about $1500(taxes/etc), you get a great 29er bike with full
suspension(air shocks front AND rear both with lockouts), 27 speed, 180/160
rotor-hydraulic brakes, wide handlebar and great performance. I rode it home
from the bike shop as my bike carrier wouldn't fit(I now own the Highland
Sportwing rack that carries bikes by the wheels instead of the frame and it
works perfectly!) and found I did not like the seat. Therefore, I have replaced
the seat with my old Bell Gel that I like; It's not too wide but still soft and
comfy for long rides without the need for padded biker shorts. In the time I've
own this bike, I took it back to the shop once to readjust the shifting
mechanism for the rear as it was hanging/jumping gears. I could've done this
myself, but, since it's under warranty I decided to let the shop take care of
it. I am now convinced I will keep the bike and have since drilled/tapped for a
water bottle cage underneath the main frame(my ONLY complaint). Now, for the
good stuff: I've rode this bike day/night on streets, dirt roads, rock trails,
sandy areas, soft farmground, through mud, in one foot of water, in the pouring
rain, on rocky technical stuff, across the thick grass at the park, and pretty
much anywhere else you can think of in that time period. Before this bike, I
had a 26" full suspension, box-store Schwinn S25 which I bought new Geax
tires, ProMax Rim Brake Pads, and a used Manitou air shock for the rear which I
had rode the same way. This is a NIGHT and DAY difference! My favorite
improvement has been the rotor-hydra brakes over the old rim brakes! No more
mud/rock-gouging problems on my rims/brake pads. They squeaked a few times when
they were new but I have not had one "peep" of noise out of them
since! I miss the "nimble" 26" at times. BUT, the more I ride
this bike, the more I like it! I also rode my friend's full suspension 26"
Cannondale(a NICE bike) and I find this to be very competitive in nature. Just
because this isn't a $3000 bike, doesn't mean this is a pile of junk. It has
been a very good investment from my point of view. Again, other than the lack
of a factory provision for a water bottle cage, I've found this to be a very
good performer at everything I've done. Granted, I am not flying through the
air every day; I did, however, get airborne about 3-4' high and about 10-12'
long on a downhill portion at roughly 30mph. I felt in complete control the
whole time. As for the factory, stock WTB Wolverine tires, they have not let me
down yet. They do not feel bumpy/knobby on smooth roads and have not let go
when I was in hard turns on dirt. Oh, I forgot to mention that my local bike
shop installed HD thorn-resistant tubes AND cut the original tubes to wrap
around the HD ones with no slime installed. I've had NO flats thus far; Again,
I've rode this bike everywhere and I know I've pulled stickers, thorns, etc.
out of my tires after rides. I do plan to install slime anyway just to be sure
when I go places that are far from home. Another interesting note that you may
be interested in is the weight. I took 2 different, digital bathroom scales and
they both produced the same results. When I balanced the bike on the rear wheel
the best I can several times, the weight was an approx 38 pounds. Remember, it
is basically stock with a plastic bottle cage and HD tubes/stock tubes. Yes,
this is considered heavy to the "hardcore" group but I've not had a
problem with it. It gives me a good workout and I've had to carry this bike up
some rocky cliffs I couldn't ride without problems. I suppose it might be about
5-7 pounds lighter if I were to use normal tubes, replace the pedals and
handlebar with carbon fiber. However, at this point in my life, I'm not
concerned about making things easy on me in regards to lightweight equipment. I
want durability and, thus far, this bike has done a great job for the price!
Finally, I would also mention that I've not seen another one on the trails
anywhere I've been. But, I've gotten lots of interest, compliments, and
head-turn/double takes as I ride this thing. I hope this review helps you as I
was desperate for one when I was considering this bike for purchase. It's been
a great value considering what you get for the money.
11 of 13 people found the following review helpful.
Diamondback Recoil Pro 29er Owners Assessment
By Michael S. Hanson
The Recoil Pro 29er is smooth, solid, quiet, and
comfortable. It shifts crisply, brakes precisley, rolls effortlessly, and
glides over the rocks and uneven terrain with the 29" wheels and Rock Shox
Suspension. I was concerned about the seat and how comfortable that was going
to be. I was again, pleasantly surprised! This bike is an excellent "bang
for the buck" spent. For those people who demand quality and don't have a
huge budget, this is a great bike for you. I am one well satisfied owner!
4 of 4 people found the following review helpful.
Great Bike for the money
By David Koegel
I love this bike all but the noisy front disc brake. Ride
like a dream and came assembled and tuned just had to put bars on and inflate
the tires and shocks.
See all 4 customer reviews...
.jpg)
